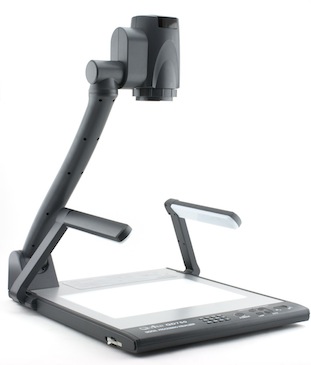

The QD700... And Then Some
Our engineers took all of the advanced features of the best selling QD700 and added an articulated, rotating camera head. You can move the camera in almost any direction or attitude, allowing you to show virtually any subject matter printed or 3D accurately and with tremendous flexibility. The QD750 is the only full-sized document camera available with this kind of flexibility. It shares the same precision lens with 22X Optical Zoom and the same 30 frames per second video performance as its sibling the QD700.

Easy Connectivity!
The QD750 has a complete Multi-Media Switching system, Video Scaler and Projector Control. You can connect 2 MAC or PC computers (with audio), a DVD player, and a VCR directly to the QD750, and you need only one VGA cable to connect to your display device or projector, saving hundreds of dollars in installation costs.

Features Specifications Documents Software

Features

XGA Output for use with any type of high resolution display device. High quality precision lens with Industry Leading 22X Optical Zoom and 10X Digital Zoom. Fully Articulated, Rotating and Motorized camera head for scrolling of documents, photos, 3D objects, etc. Built in Multi-Media Switching and Control Functions. Internal Image Storage of up to 7 High Resolution Images. High speed USB 2.0 port for Video/Image capture on both PC and Mac. Powerful set of advanced image manipulation tools and special effects. 2 RGB inputs and 2 RGB outputs provide outstanding installation flexibility and convenience. Arm and Base LED lights are ECO-Friendly, cool to the touch and last up to 10 years. Choose between Static/Dynamic modes for high resolution images or high frame rate video. View transparencies, X-rays, photographic negatives, and microscope slides using the built in full sized LED light box. Wireless Remote Control Two-year Parts & Labor warranty   QView QD750 Brochure   (2867 KB)   Camera QD750 Image Sensor 1/4" CCD Output Resolution 1024x768, 800x600 Optical Zoom 22X Digital Zoom 10X Motorized Camera Head Yes   Input/Output   Video Input - S-Video 1 Video Input - C-Video RCA x 1 (can pass through to VGA output) Video Input - VGA 2 Video Output - S-Video 1 Video Output - C-Video 1 Video Output - VGA 2 Video Scaler Yes Audio Input 4 Audio Output Mini Jack   Imaging Features   Image Storage 9 Negative Yes Freeze Yes Split Yes Title Yes Mirror Yes Rotation 0, 90, 180, 270 (Rotating camera head)   PC Connectivity   Driver Yes Frame Rate 30 fps Connectivity USB OS Support PC, MAC   Lighting   Lighting 2 x 1.5w LED Arm Lights Light Box 8x1/2" x 11" LED light B   Control   RS232 Control Yes Remote Control Yes Input Switching Yes (Switches all video and audio inputs to VGA Out) Shooting Area 320mm x 240mm   Others   Form Factor Full Size Weight 12 lbs Power Consumption 20w Dimensions (WxDxH)                      Setup 20.1"x20.9"x22.4" Dimensions (WxDxH)                     Folded 20.1"x16.1"x4.7" QD600, QD700, QD750, and QP10 Driver for Windows XP/7   (29297 KB)
