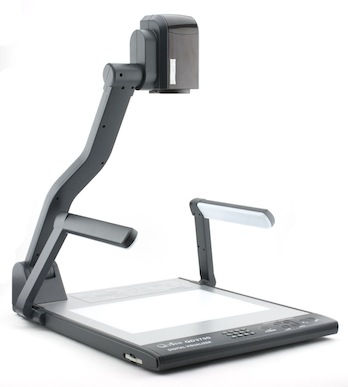

QView QD3700
Full Featured with Motorized Camera Head
Professional Presentations with Motorized Camera Head
The QD3700 is QOMO's solution to all your presentation needs. The motorized camera head smoothly scrolls zoomed in images and documents for a clean professional presentation. The 2.0 megapixel sensor and 12X optical zoom provides the ultimate in image sharpness and clarity. It can display images in XGA, SXGA, WXGA and 720p resolution, so there is no compression when it is attached to a high resolution display.
Easy Connectivity with Unique Switching-Scaler
Featuring QOMO's unique Multi-Media Switching and Scaler system. You can connect sources like computers, DVD players, or even another camera to the QD3700 and switch between them without touching the cables.
|
|
|
- Motorized Camera Head for smooth scrolling
- New 2.0 megapixel imaging sensor
- XGA , SXGA, WXGA and 720p VGA output
- Multimedia switcher: Video inputs include (2) VGA, (1) Composite Video, (1) S-Video
- Programmable projector RS232 control port
- Wireless Remote Control
- High quality precision lens with 12X Optical Zoom and 10X Digital Zoom.
- USB computer interface with Image and Video Capture software
- Internal Image Storage for 128 High Resolution Images.
- High speed USB 2.0 port for Video/Image capture on both PC and Mac.
- Plug n Play
- Powerful set of advanced image manipulation tools and special effects.
- Arm and Base LED lights are ECO-Friendly, cool to the touch and last up to 10 years.
- View transparencies, X-rays, photographic negatives, and microscope slides using the built in full sized LED light box.
- Wireless Remote Control
- Two-year Parts & Labor warranty
- Need projector or LCD/LED/Plasma display screen in order to project document camera image for audience
- Compatible with GradeCam
| Camera |
QD3700 |
| Image Sensor |
2.0M CMOS |
| Output Resolution |
XGA, SXGA, WXGA, 720p |
| Optical Zoom |
12X |
| Digital Zoom |
10X |
| Motorized Camera Head |
Yes |
|
Input/Output
|
|
| Video Input - S-Video |
1 |
| Video Input - C-Video |
RCA x 1 (can pass through to VGA output) |
| Video Input - VGA |
2 |
| Video Output - S-Video |
1 |
| Video Output - C-Video |
1 |
| Video Output - VGA |
1 |
| Video Scaler |
Yes |
| Audio Input |
4 |
| Audio Output |
Mini Jack |
|
Imaging Features
|
|
| Image Storage |
128 in Flash |
| Negative |
Yes |
| Freeze |
Yes |
| Split |
Yes |
| Title |
Yes |
| Mirror |
Yes |
| Rotation |
0, 90, 180, 270 |
|
PC Connectivity
|
|
| Driver |
Plug-n-Play, TWAIN |
| Frame Rate |
Upto 20 fps |
| Connectivity |
USB |
| OS Support |
PC, MAC |
|
Lighting
|
|
| Lighting |
2 x 1.5w LED Arm Lights |
| Light Box |
8x1/2"; x 11" LED Back Lit |
|
Control
|
|
| RS232 Control |
Yes |
| Remote Control |
Yes |
| Input Switching |
Yes (Switches all video and audio inputs to VGA Out) |
| Shooting Area |
12.6" x 9.5" |
|
Others
|
|
| Form Factor |
Full Size |
| Weight |
12 lbs |
| Power Consumption |
20w |
| Dimensions (WxDxH) Setup |
20.1"x20.9"x22.4"; |
| Dimensions (WxDxH) Folded |
20.1"x16.1"x4.7"; |
|
|
|
|
|
|
|
|
|
Industries:
Education, Corporate, Video Conferencing, Legal, Scientific Research, Medical, Military
Ideas for your Document Camera!
• Zoom in to examine bone and tissue cell structures, and compare side-by-side the textbook image with the actual cells
• With motorized head, scroll up & down documents during a meeting for quick and easy sharing.
• Digitally annotate over the document and save it to your computer
• Video conference with other classes or business partners
• Use built-in camera switcher/scaler to display computers, dvds, etc.
|
|
|
|
|
|
|
|
|
