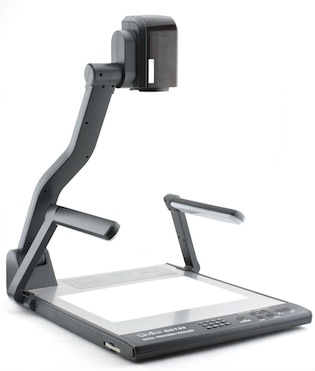

QView QD700
High Performance and Great Value... A Winning Combination!
Rugged and Reliable
Educators love the QD700's flexibility and powerful features, while administrators love its value for money. We have thousands of these units in service all around the US and the QD700 has proved itself to be very rugged and reliable.
Excellent Integrator Features
The QOMO QD700 has truly changed end-users' expectations of what a document camera can and should do. Our engineers have designed the QD700 with a complete Multi-Media Switching system, Video Scaler and Projector Control. You can connect 2 MAC or PC computers (with audio), a DVD player, and a VCR directly to the QD700, and you need only one VGA cable to connect to your display device or projector, saving hundreds of dollars in external switching/scaler hardware and installation costs.
Flexible Motorized Head
In addition to the powerful 22X Optical Zoom, the QOMO QD700 motorized camera head smoothly scrolls zoomed in images and documents for a clean professional presentation. Control the camera scroll with a single button on the front panel or the remote control.
Record your presentation on your computer for future use at 30fps via the USB port and included Video Capture Software.
|
|
|
- XGA Output for use with any type of high resolution display device.
- High quality precision lens with Industry Leading 22X Optical Zoom and 10X Digital Zoom.
- Motorized camera head for scrolling of documents, photos, 3D objects, etc.
- Built in Multi-Media Switching and Control Functions.
- Internal Image Storage of up to 7 High Resolution Images.
- High speed USB 2.0 port for Video/Image capture on both PC and Mac.
- Powerful set of advanced image manipulation tools and special effects.
- 2 RGB inputs and 2 RGB outputs provide outstanding installation flexibility and convenience.
- Arm and Base LED lights are ECO-Friendly, cool to the touch and last up to 10 years
- Choose between Static/Dynamic modes for high resolution images or high frame rate video.
- View transparencies, X-rays, photographic negatives, and microscope slides using the built in full sized LED light box.
- Wireless Remote Control
- Two-year Parts & Labor warranty
- Need projector or LCD/LED/Plasma display screen in order to project document camera image for audience
| Camera |
QD700 |
| Image Sensor |
1/4" CCD |
| Output Resolution |
1024x768, 800x600 |
| Optical Zoom |
22X |
| Digital Zoom |
10X |
| Motorized Camera Head |
Yes |
|
Input/Output
|
|
| Video Input - S-Video |
1 |
| Video Input - C-Video |
RCA x 1 (can pass through to VGA output) |
| Video Input - VGA |
2 |
| Video Output - S-Video |
1 |
| Video Output - C-Video |
1 |
| Video Output - VGA |
2 |
| Video Scaler |
Yes |
| Audio Input |
4 |
| Audio Output |
Mini Jack |
|
Imaging Features
|
|
| Image Storage |
9 |
| Negative |
Yes |
| Freeze |
Yes |
| Split |
Yes |
| Title |
Yes |
| Mirror |
Yes |
| Rotation |
No |
|
PC Connectivity
|
|
| Driver |
Yes |
| Frame Rate |
30fps |
| Connectivity |
USB |
| OS Support |
PC, MAC |
|
Lighting
|
|
| Lighting |
2 x 1.5w LED Arm Lights |
| Light Box |
8x1/2" x 11" LED light B |
|
Control
|
|
| RS232 Control |
Yes |
| Remote Control |
Yes |
| Input Switching |
Yes (Switches all video and audio inputs to VGA Out) |
| Shooting Area |
320mm x 240mm |
|
Others
|
|
| Form Factor |
Full Size |
| Weight |
12 lbs |
| Power Consumption |
20w |
| Dimensions (WxDxH) Setup |
20.1"x20.9"x22.4" |
| Dimensions (WxDxH) Folded |
20.1"x16.1"x4.7" |
|
|
|
|
|
|
|
|
|
|
Industries:
Education, Corporate, Video Conferencing, Legal, Scientific Research, Medical, Military
Ideas for your Document Camera!
• Zoom in to examine bone and tissue cell structures, and compare side-by-side the textbook image with the actual cells
• With motorized head, scroll up & down documents during a meeting for quick and easy sharing.
• Digitally annotate over the document and save it to your computer
• Video conference with other classes or business partners
• Use built-in camera switcher/scaler to display computers, dvds, etc.
|
|
|
|
|
|
|
|
|
