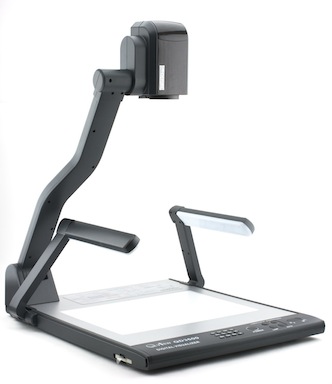

QView QD3600
Built-In Multi-Media switching and Video Scaler
Fewer Cables with Built-In Multi-Media System
QOMO HiteVision document cameras are in a class by themselves. The QD3600 provides a multimedia control system built in to the camera body. This means that you can attach multiple video sources and use the control panel on the front of the camera to switch between them. Since our cameras convert different video signals into one signal type, it also elimates the cost and hassle of running many cables to your display.
Now with an improved 2.0 MP CMOS image sensor and 12X optical zoom.
|
|
|
- New 2.0 megapixel imaging sensor
- XGA , SXGA, WXGA and 720p VGA output
- Multimedia switcher: Video inputs include (2) VGA, (1) Composite Video, (1) S-Video
- Programmable projector RS232 control port
- Wireless Remote Control
- High quality precision lens with 12X Optical Zoom and 10X Digital Zoom.
- USB computer interface with Image and Video Capture software
- Internal Image Storage for 128 High Resolution Images.
- High speed USB 2.0 port for Video/Image capture on both PC and Mac.
- Plug n Play
- Powerful set of advanced image manipulation tools and special effects.
- Arm and Base LED lights are ECO-Friendly, cool to the touch and last up to 10 years.
- View transparencies, X-rays, photographic negatives, and microscope slides using the built in full sized LED light box.
- Wireless Remote Control
- Two-year Parts & Labor warranty
- Need projector or LCD/LED/Plasma display screen in order to project document camera image for audience
| QD3600 Specifications |
Camera |
| Image Sensor |
2.0MP CMOS |
| Output Resolution |
XGA, SXGA, WXGA, 720p |
| Optical Zoom |
12X |
| Digital Zoom |
10X |
| Motorized Camera Head |
No |
Inputs / Outputs |
| Video Input |
VGA (2), S-Video, C-Video |
| Video Output |
VGA (2) |
| Video Scaler |
Yes |
| Audio Input |
4 |
| Audio Output |
Mini Jack |
Imaging Features |
| Image Storage |
128 |
| Imaging Functions |
Negative, Freeze, Split, Title, Mirror, Rotation (0, 90, 180, 270) |
PC Connectivity |
| Driver |
Plug-n-Play, TWAIN |
| Frame Rate |
24 fps |
| Connectivity |
USB |
| OS Support |
PC, Mac |
Lighting |
| Lighting |
2 x 1.5W LED Arm Lights |
| Light Box |
8 x 1/2" x 11" LED Light |
Control |
| RS232 Control |
Yes |
| Remote Control |
Yes |
| Input Switching |
Yes (Switches all video / audio inputs to VGA output) |
| Shooting Area |
12.6" x 9.5" |
Other |
| Form Factor |
Full Size |
| Weight |
12 lbs |
| Dimensions (WxDxH) |
Setup: 21" x 30" x 22.5" |
| Dimensions (WxDxH) |
Folded: 21" x 16" x 4.7" |
| Power Consumption |
20W |
|
|
|
|
|
|
|
|
|
Industries:
Education, Corporate, Video Conferencing, Legal, Scientific Research, Medical, Military
Ideas for your Document Camera!
• Zoom in to examine bone and tissue cell structures, and compare side-by-side the textbook image with the actual cells
• Display documents during a meeting for quick and easy sharing. Digitally annotate over the document and save it to your computer
• Video conference with other classes or business partners
Use built-in camera switcher/scaler to display computers, dvds, etc.
|
|
|
|
|
|
|
|
|
